All In One Panel PC For ATM

Name: All In One Panel PC For ATM
Brand: CJTOUCH
Price: 1 USD

Quality All In One Panel PC For ATM for sale

Brand Name : CJTOUCH

Model Number : CCT170-CFF-J1900

Certification : CE FCC

Place of Origin : Guangdong,China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, PayPal

Supply Ability : 3000 pcs per week

Delivery Time : 5-8 working days

Packaging Details : 1 or 2 pcs Touch screen all in one panel pc in one carton

Product Name : Touch screen all in one panel pc

Touch Type : projected capacitive touch panel

Resolution : 1280*1024

CPU : Android / I3 / I5 / I7 CPU

RAM : 2GB to 32GB

Memory : 32GB to 512GB

Interface : USB / COM / H-DMI /VGA /RJ45, etc.

Custom Made : Touch screen all in one panel pc with Camera/ 4G/ Printer, etc.

Contact Now

17'' Touch Screen All In One Panel Pc Multi Touch For Kiosk, ATM

Features:

Optional size from 10.1'' to 65''
With PCAP vandal proof touchscreen, support 10 points touch
L G, Sam sung, AU O, BO E, ect LCD LED Panels
IP65 touch screen sur face waterproof sealled
CPU J1900/I3/I5/I7/A-ndroid according to your requirements
RAM from 2GB to 32GB Optional
32/64/128/256/512 ect SSD Optional
VESA mounting and rear mounting
Factory best price and fast delivery
Our Touch screen all in one panel pc are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
Warranty: 12 months
14 years' experienced manufacturer of SAW / Infrared / PCAP touch screens/touch monitors/ Touch screen all in one panel pc

Specifications:

General Information
Model	CCT170-CFF-J1900
CPU	J1900 / I3/I5/I7/ Android optional
RAM	From 2GB - 32GB
Memory	From 32GB -512GB SSD
Interface	USB, COM, RJ45, HD-MI, VGA
Power supply	Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A
Mount Interface	1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical
OS	Wins 7/8/10 or Android
LCD Specification
Active area(mm)	337.92 × 270.336 (H×V) mm
Resolution	1280×1024@60Hz
Pixel Pitch(mm)	0.264×0.264 (H×V)
Nominal input voltage VDD	+5V
Viewing angle(v/h)	85/85/80/80 (Typ.)(CR≥10)
Contrast	1000:1
Luminance (cd/m2)	250 cd/m² (Typ.)
Response time	3.8/1.2 (Typ.)(Tr/Td) ms
Support color	16.7M , 90% NTSC
Backlight MTBF(hr)	30000
Touchscreen Specification
Type	PCAP touchscreen
Multi touch	10 points multi-touch
Touch Life Cycle	10 millions
Touch Response time	8ms
Touch System Interface	USB interface
Power consumption	+5V@80mA
External AC Power Adapter
Output	DC 12V /5A
Input	100-240 VAC, 50-60 Hz
MTBF	50000 hr at 25°C
Environment
Operating temp.	0~50°C
Storage temp.	-20~60°C
Operating temp.	20%~80%
Stroage RH	10%~90%

Components:

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs

Package :

1 or 2 pcs Touch screen all in one panel pc in one carton, EPE package inside

Shipping :

For sample order: By Fedex, TNT, UPS, DHL door to door service etc.

For bulk order: By air to airport or by sea to seaport

Pictures:

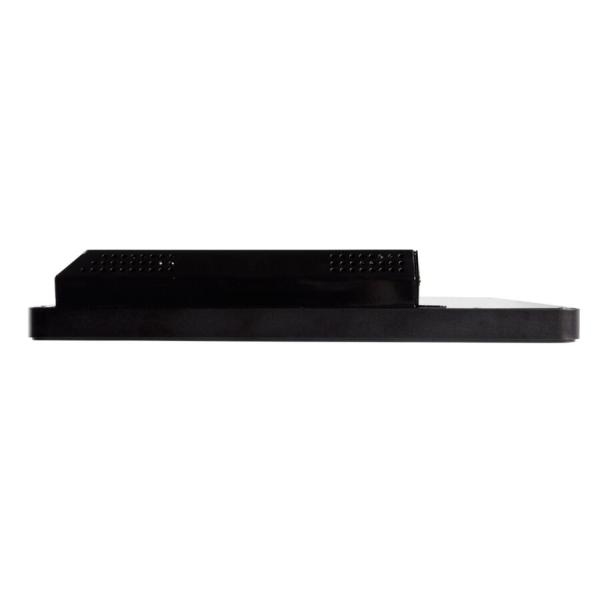

All In One Panel PC For ATM

Drawing:

All In One Panel PC For ATM
